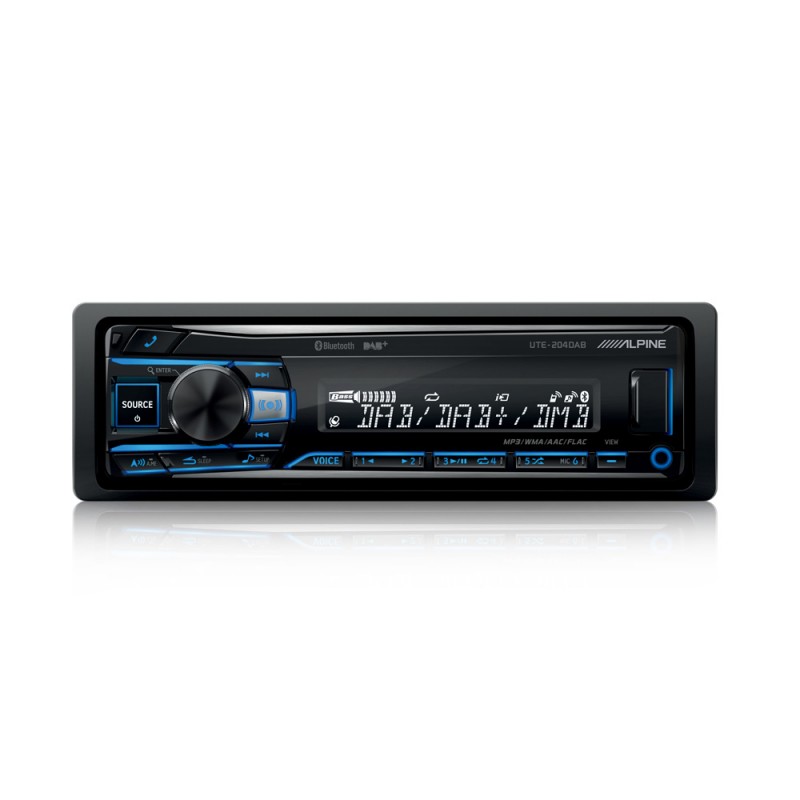

Lecteur multimédia numérique avec DAB+ et Bluetooth ALPINE UTE-204DAB

Caractéristiques

Radio Memory Presets: Preset Stations (FM:12, MW:6, LW:6) Memory: Auto Memory RDS RDS Functions: AF, TA, TP, PTY, EON PTY (Programme Type) Display Radio DAB DAB+ Tuner Built-in DAB+/DMB Supported DLS (Dynamic Label Service) DAB Service Following RDS Fallback (where available) Service Preset: 18 Preset Memory Auto Ensemble/Service Memory Service Search Function PTY Search Function Antenna Power Supply Selection A compatible DAB Antenna is required

BLUETOOTH® Built-in BLUETOOTH® Module Hands Free Calling: HFP (Hands Free Profile) Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible Phone Book Search Voice Dial Operation Auto Answer Call Waiting Call History Display: Phone Book Call, Dialled Call, Received Call Speech Volume Level Adjustment Hands-Free Phone Sound Setting Firmware Updatable Microphone Included

Conçu pour iPhone® / iPod®

Connection:USB connection (KCU-445i Required) Made for iPod/iPhone M.I.X. (Shuffle) Play: Track Repeat: All, Track Battery Charging

USB Front USB Connection MP3, WMA, FLAC, AAC Playback Folder Up/Down M.I.X. Random Play Repeat: Track, Album, All USB AOA (Android Open Accessory) 2.0

Sound Tuning Subwoofer Level Adjustment BASS ENGINE SQ: Level Control OFF/1-6 Subwoofer Phase Select: 0°/180° Subwoofer System Select High Pass Filter Low Pass Filter 2V Voltage 3PreOuts 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical 3-band Parametric Equalizer

Général

Power Output: 4 x 50 W High Power Amplifier Display LCD: 14 Segments White LCD Display 1Line Control Type: Rotary Encoder Knob Variable RGB Illumination Buttons 3 PreOuts (2V, Front / Rear / Subwoofer) 24-bit DAC Front AUX Input (3.5mm mini jack) Steering Wheel Remote Control Ready -20dB Mute Remote Control Ready Clock Detachable DIN Trim Plate Detachable Face Plate Dimmer Power Antenna Lead Remote Turn-On AUTO OFF function (after 30 min)

Spécifications

Puissance Max Max Power Output: 4 x 50W

Radio DAB Tuning Range Band III : 174.928 - 239.2 MHz Radio

FM Tuning Range: 87.5 - 108.0

MHz Radio MW Tuning Range: 531 - 1,602 kHz Radio LW Tuning Range: 153 - 279 kHz

USB USB Requirements: USB 1.1/2.0 Max. Power Consumption: 1000 mA File System: FAT 16/32

Sound Tuning Subwoofer Level Adjustment: 0 to 15 dB Subwoofer Phase Setting: 0° or 180° High Pass Filter: Off, 80/100/120 Hz Low Pass Filter: Off, 80/100/120 Hz Bass Level Control Range: ±7 dB at 100Hz Bass Center Frequency: 60/80/100/120 Hz Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow) Treble Level Control Range: ±7 dB at 10 kHz Treble Center Frequency: 7.5k/10k/12.5k/15k Hz Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow) Mid Level Control Range: ±7 dB Mid Center Frequency: 500/1k/1.5k/2.5k Hz Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

Général

Power Requirement: 12V.DC Pre Output Voltage (Before Clipping): 2V / 10k ohms Aux In: 1.4V / 10k ohms Maximum Mounting Angle: 30° Weight: 0.8 kg

Dimensions Din Size: 1 DIN Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
